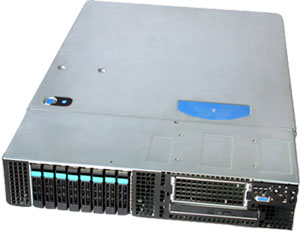

The Servaris Premium ProServ M530
2U Rack Server provides a superior platform with the latest Intel Six-Core
and Quad-Core 5600 Westmere Xeon Processors. DDR3/1333 Registered Memory,
Hot-Pluggable Cooling Fans and Power, Full functioning SAS Hardware
RAID and, Web based Remote Lights-Out Server Management.
In a nutshell, it's the Top-of-the-Line in 2U Rack Servers.
Servaris's M530 2U Rack Server will provide nothing less
than outstanding performance, dependability and manageability.
High performance and redundancy are essential for enterprise business
running high volume transactional SQL databases, central mail services,
High Performance Computing data center and other critical applications.
-
Think Green: Energy Savings from design implementation and cost savings from performance per watt. Reduce power and cooling costs while increasing rack density with policy-based power and thermal management
Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.
Servaris' ProServ M530 Full Featured
2U Rack Server will provide you with high value, superior reliability,
performance and, a high return on investment.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions.
M530 Specifications and Features
Premium ProServ M530 2U
Rack Server Optimized Chassis including High-Performance Active Back
plane and Mid plane with Intelligent RAID
Chassis Dimensions: 3.4" (87.3 mm ) H
x 16.9" (430 mm) W x 27.75" (704.86 mm) D
Server Board Chipset: Intel® 5520 chipset
with Intel® I/O Controller Hub ICH10R. Supports both 32-bit and
64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions
Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008
Server
Processor Support: Single
or Dual 64-bit Intel Six-Core and Quad-Core 5600
Westmere or Quad-Core Xeon 5500 Sequence Processors
with up to 6.4 GT/s (Giga Transfers per Second).
Internal Storage: Up to 8 Hot-Pluggable
SAS (Serial Attached SCSI 3GB/s) and/or SATA (Serial Attached ATA) 2.5"
Hard Drives. Midplane provides complete Hardware
RAID including 512MB Memory and 72-Hour Backup Battery without
the need for a valuable PCI-Express slot. Supports RAID Levels, 0, 1,
3, 5, 6, 10, 50 and, 60.
PCI Expansion: 1 riser with three full-height
PCI Express 2.0 x8 wired slots (one x16 and two x8 connectors). Options
for 5 PCI Express 2.0 slots (3 Full-Height and 2 Low-Profile) or 2 Full-Height
PCI-X and 1 PCI-Express x8 and 2 Low-Profile PCI-Express x8 slots.
Network: Dual Intel 82575EB PRO/1000 (10/100/1000)
PCI-Express Server Ethernet Controllers with Intel® Virtualization
Technology.
Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.
Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)
Memory: 12 DDR3 DIMM sockets. 192GB
Total Memory, 96GB per Processor. Channel
mirroring, demand scrubbing, patrol scrubbing, and channel independent
mode
Cooling System: 3 Fixed Cooling Fans.
Power: High Efficiency 750-Watt P.F.C. 120-240-Volt
Auto-Sensing Power Supply. Option for fully Redundant 1+1 Hot-Pluggable
120-240 Volt P.F.C. Power Supplies
Remote Server Management:Included Advanced
Remote Management daughter card with 10/100 dedicated NIC provides
Redirected Console, KVM and http access
to the integrated management controller.
Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware maintenance options available.
|
