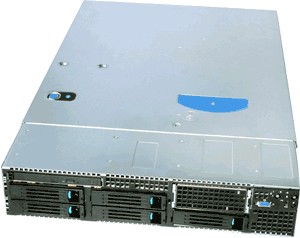

Servaris ProServ M525 is a High Performance
2U Rack Server built on Intel Westmere 5600 Six-Core and Quad-Core Xeon
Processor Technology.
Servaris M525 2U Rack Server will provide outstanding performance,
dependability and manageability for almost any application you throw
at it. High performance and redundancy are essential
for enterprise business running high volume transactional SQL databases,
central mail services, High Performance Computing data center and other
critical applications.
-
Think Green: Energy Savings from design implementation and cost savings from performance per watt. Reduce power and cooling costs while increasing rack density with policy-based power and thermal management
Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.
Servaris' ProServ M525 Full Featured
2U Rack Server will provide you with high value, superior reliability,
performance and, a high return on investment.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features
Premium ProServ M525 2U
Rack Server Optimized Chassis including High-Performance Passive Back
plane
Chassis Dimensions: 3.4" (87.3 mm ) H
x 16.9" (430 mm) W x 27.75" (704.86 mm) D
Server Board Chipset: Intel® 5520 chipset
with Intel® I/O Controller Hub ICH10R. Supports both 32-bit and
64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions
Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008
Server
Processor Support: Single or Dual
64-bit Intel Six-Core and Quad-Core 5600 Westmere or
Quad-Core Xeon 5500 Sequence Processors with up to 6.4
GT/s (Giga Transfers per Second).
Internal Storage: Up to 6 Hot-Pluggable
SATA-300 (Serial Attached ATA) 3.5" Hard Drives. RAID 0, 1, and
10 with embedded Server RAID Technology II. SAS (Serial
Attached SCSI 3GB/s) Hard Drive Configurations require an add-in
SAS module or RAID controller.
PCI Expansion: 1 riser with three full-height
PCI Express 2.0 x8 wired slots (one x16 and two x8 connectors). Options
for 5 PCI Express 2.0 slots (3 Full-Height and 2 Low-Profile) or 2 Full-Height
PCI-X and 1 PCI-Express x8 and 2 Low-Profile PCI-Express x8 slots.
Network: Dual Intel 82575EB PRO/1000 (10/100/1000)
PCI-Express Server Ethernet Controllers with Intel® Virtualization
Technology.
Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.
Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)
Memory: 12 DDR3 DIMM Slots. 192GB
Total Memory, 96GB per Processor. Channel mirroring, demand scrubbing,
patrol scrubbing, and channel independent mode
Cooling System: 3 Fixed Cooling Fans.
Power: High Efficiency 750-Watt P.F.C. 120-240-Volt
Auto-Sensing Power Supply. Option for Redundant 1+1 Hot-Pluggable
120-240 Volt P.F.C. Power Supplies
Remote Server Management:Included Advanced
Remote Management daughter card with 10/100 dedicated NIC provides
Redirected Console, KVM and http access
to the integrated management controller.
Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware maintenance options available.
|
