1U Rack Server

Cost-effective Virtualization, Database and Infrastructure Platform in a Space Saving 1U Server Chassis with Dual Intel Westmere 64-Bit Six-Core and Quad-Core 5600 or Quad-Core Xeon 5500 Sequence Processors with up to 196GB Registered E.C.C. DDR3 Memory

To Add Your Required Components &
Get a Price Quote
Click on Customize Button

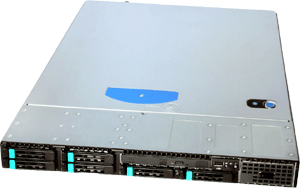

M501 1U Rack Server
M501 Cost=effective Quad-Core Xeon 5501 Based 1U Rack mount Server by Servaris

Buy with confidence!
Ready to deploy starting from $2,035

Servaris ProServ M501 1U Computer Rack Mount Server is the latest in High Performance Server Technology based upon Intel Six-Core and Quad-Core 5600 Xeon Technology.

Six hot-swap Hard Drive Bays provide you with ability for RAID-0, RAID-1 or RAID-10 + Hot-Spare for Reliability and Redundancy using the embedded SATA-300 RAID Controller. without additional add-in controller out-of-the-box. Optional add-in RAID Controller provides 8 x 2.5-inch Hard Drive Bays.

The ProServ M501 will provide outstanding performance, dependability and manageability. High performance and redundancy are essential for enterprise business running high volume transactional SQL databases, central mail services, High Performance Computing data center and other critical applications.

  • Think Green: Energy Savings from design implementation and cost savings from performance per watt. Reduce power and cooling costs while increasing rack density with policy-based power and thermal management
  • Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
  • Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.

Servaris' ProServ M501 1U Rack Server will provide you with high value, superior reliability, performance and, a high return on investment.

The Servaris M501 1U Rack Server is ideal as Web Server, Transactional Database Server and Development Server.

Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions.

Key Features

ProServ M501 1U Rack Server Optimized Chassis including High-Performance Back plane and Passive Mid plane.

Chassis Dimensions: 1.7" ( 43.3mm) H x 16.9" (430mm) W x 27.19" (690.6mm) D

Server Board Chipset: Intel® 5520 chipset with Intel® ICH10R; Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008 Server

Processor Support: Single or Dual 64-bit Intel Six-Core and Quad-Core 5600 Westmere or Quad-Core Xeon 5500 Nehalem Processors with up to 6.4 GT/s (Giga Transfers per Second).

Internal Storage: Up to 8 Hot-Pluggable SAS and/or SATA, and/or SSD (Solid State) 2.5" Hard Drives. Passive Mid plane connects Hard Drives to Server Board or Add-in RAID Controller. If your intent is to have 8 SATA-300 Hard Drives, an add-in RAID Controller is required.

PCI Expansion: 1 full-height (PCI Express 2.0 x16), 1 Intel® I/O Expansion Module (PCI Express 2.0 x8)

Network: Dual Intel 82575EB (10/100/1000) PCI-Express Server Ethernet Controllers with Intel® Virtualization Technology.

Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.

Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)

Memory: 12 DDR3 DIMM sockets. 192GB Total Memory, 96GB per Processor. Channel mirroring, demand scrubbing, patrol scrubbing, and channel independent mode

Cooling System: Four dual-rotor 56mm fans and one single-rotor 28mm fan mounted in tool-less fan module and providing cooling for the processors, hard drives, and add-in cards; two 28mm fans for cooling the power supply.

Headless Lights Out: Bios and OS Console Redirection support, PXE boot option, IPMI compliant Server Chassis and Server Board and Server Management Software included.

Power: 650-Watt P.F.C. Power Supply with option for Redundant Hot-Pluggable 1+1 120-240 Volt P.F.C. Power Supplies

Remote Server Management: Included Advanced Remote Management daughter card with 10/100 dedicated NIC provides Redirected Console, KVM and all functionality via Web Browser.

Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.
