Servaris ProServ M500 Small Business Rackmount 1U Server
is a performance monger. It leaves others in the dust. The M500 has
true Attitude. It doesn't want to stop regardless of what you throw
at it. Features Intel Six-Core 5600 Xeon and Quad-Core Xeon
5500 Processors. Also features up to 192GB DDR3 E.C.C.
Registered Memory which is excellent if you're going to do
Server Virtualization.
Three hot-swap Hard Drive Bays provide you with ability
for RAID-5 or RAID-1 + Hot-Spare for reliability and redundancy.
The ProServ M500 will provide outstanding
performance, dependability and manageability. High
performance and redundancy are essential for enterprise business running
high volume transactional SQL databases, central mail services, High
Performance Computing data center and other critical applications.
- Think Green: Energy Savings from design
implementation and cost savings from performance per watt. Reduce
power and cooling costs while increasing rack density with policy-based
power and thermal management
- Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
- Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.
Servaris' ProServ M500 Small Business 1U Rack Server
will provide you with high value, superior reliability, performance
and, a high return on investment.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features

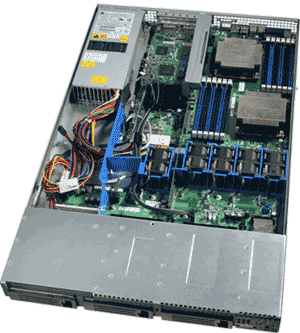

ProServ M500 Rack Mount Server space optimized 1U Chassis
including High-Performance Back plane and Passive Mid plane.
Chassis Dimensions: 1.7" ( 43.3mm) H x 16.9" (430mm) W x 27.19" (690.6mm) D
Server Board Chipset: Intel® 5520 chipset with Intel® ICH10R; Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008 Server
Processor Support: Single
or Dual 64-bit Intel Six-Core 5600 Westmere or
Quad-Core Xeon 5500 Sequence Processors with up to 6.4
GT/s (Giga Transfers per Second).
Internal Storage: Up to 3
Hot-Pluggable SAS or SATA (Serial Attached ATA) 3.5" Hard
Drives. Passive Mid plane connects Hard Drives to integrated SATA RAID
Controller on Server Board or to an Add-in RAID Controller. SAS Hard
Drives require Add-in RAID Controller.
PCI Expansion: 1 full-height (PCI Express 2.0 x16), 1 Intel® I/O Expansion Module (PCI Express 2.0 x8)
Network: Dual Intel 82575EB (10/100/1000) PCI-Express Server Ethernet Controllers with Intel® Virtualization Technology.
Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.
Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)
Memory: 12 DDR3 DIMM sockets. 192GB
Total Memory, 96GB per Processor. Channel
mirroring, demand scrubbing, patrol scrubbing, and channel independent
mode
Cooling System: Four dual-rotor 56mm fans and one single-rotor 28mm fan mounted in tool-less fan module and providing cooling for the processors, hard drives, and add-in cards; two 28mm fans for cooling the power supply.
Headless Lights Out: Bios and OS Console Redirection support, PXE boot option, IPMI compliant Server Chassis and Server Board and Server Management Software included.
Power: 600-Watt High Efficiency 120-240 Volt P.F.C. Fixed Power Supply.
Remote Server Management: Included Advanced
Remote Management daughter card with 10/100 dedicated NIC provides Redirected
Console, KVM and all functionality via Web Browser.
Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.

|
