Key Features

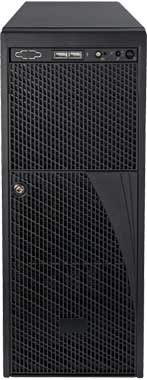

ProServ e1200P Premium Pedestal Server
Chassis with Front Panel NIC, Status and
Hard Drive LEDs. Hot-Pluggable Hard Drive cage for quick drive additions
or replacements.
Chassis Dimensions: 438mm (height) x
173mm (width) x 697mm (depth)
Server Board Chipset:
• Intel® C602 Chipset with Intel Embedded Server RAID Technology II
• 8 GT/s Intel® Quick Path Interconnect (QPI)
• Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Linux Red Hat, Linux SuSE, Fedora Core. Microsoft Windows 2003 and 2008 R2 Server.
Processor Support: One or Two Intel E5-2600 Series Xeon Procesors up to 12-Cores/processor.
Internal Storage: Customizable with 3.5-inch or 2.5-inch Drives
• Up to 8 x 3.5-inch SATA
Hard Drives (6GB/s) or 8 x 2.5-inch SSD, SAS or SATA (6GB/s) Drives
.
• Integrated Intel Rapid Storage Technology SATA controller based on LSI Software Stack with support for Software RAID-0, RAID-1, RAID-4 or RAID-10.
• Optional Add-in Hardware RAID controller provides 6GB/s SAS or SATA + online Hot-spares.
PCI Expansion: 8 PCI Expansion Slots;
• 4 full-length PCI Express Gen3 x16 slots
• 3 full-length PCI Express Gen3 x8 slot (x8 mechanical)
• 1 full-length GEN2 PCIe x4 slot
Network: 4 x Intel
L350 (10/100/1000) Server Network Ethernet Controllers
Front Panel: 2 USB Ports, Power Switch, Reset
Switch
Rear Panel: Four USB-2.0 Ports, Four RJ45 Network
Connectors, 1 Serial and 1 Video Port
Memory: 16 Memory Dimm Slots support up to 512GB DDR3/1866Mhz E.C.C. REGISTERED CMT Certifed Memory.
Cooling System: Five Hot-Swappable Redundant Cooling Fans.
Headless Lights Out: Bios and OS Console Redirection support, PXE boot option, IPMI compliant Server Chassis and Server Board and Server Management Software included.
Power: 2 x 700-Watt Platinum Level Efficiencty Redundant Hot-Pluggable 120-240 Volt P.F.C. Power Supplies.
Remote Server Management: Integrated IPMI
2.0 baseboard management controller. Optional Web
Based Remote Management Module with 10/100 dedicated NIC provides
Redirected Console, KVM via Web Browser (Firefox, Internet Explorer, Opera) access
to the integrated management controller.
Graphics: Matrox G200 2D Video Controller
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.
Customize with 3.5-inch Hard Drives |
Customize with 2.5-inch SSD and Hard Drives |
 |
 |
Servaris ProServ e1200P is a highly
reliable, Pedestal Server optimized
for maintream computing requirements.
e1200P Tower Server is comprised of high-end Intel Server Board with Intel designed Pedestal Chassis. Supports 1 or 2 Intel E5-2600 Series Xeon Processors. The Intel Server Board supports up to 512GB DDR3/1600 Mhz. CMT
Certified Memory.
With 8 Hot-Pluggable Drive Bays, storage for data is highly available. This is ideal for a Virtualization Server. With support for many operating systems on a single Server cost is reduced to a minimum enabling the highest return on investment without sacrificing Computing Performance.
The ProServ e1200P Supports Microsoft Windows 2008 R2 and Windows 2012 Operating Systems. It's Open Source Operating System Ready
and supports CentOS, FreeBSD, Fedora, Red Hat, SuSE, Ubuntu.
Servaris e1200P is
an excellent cost-effective solution for Virtualization and Storage Server Environments.
- Think Green: Energy Savings from design implementation and cost savings from performance per watt. Reduce power and cooling costs while increasing rack density with policy-based power and thermal management
- Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
- Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.
