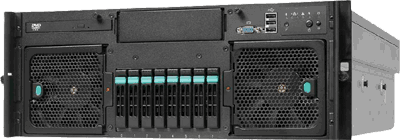

Servaris ProServ 4680
is an Enterprise Server in a 4U Rack mount format with up to 4 Intel
64-bit Six-Core Xeon 7400 Processors with
up to 16MB L2 Cache with 1066Mhz Front Side Bus.
Intel 7300 Chipset yields outstanding processing
power supporting up to 256GB of DDR2/667 Memory.
Hot-Pluggable Memory, Memory Mirroring and Sparing and Hot-Pluggable
PCI Slots add to the availability of the Servaris ProServ Enterprise
4680 Quad Six-Core Xeon Server.
Servaris
ProServ 4680 is designed from top to bottom for multi-threaded
high volume data throughput applications and high-performance computing
environments.
8 Hot-Pluggable Drive Bays supporting SAS, SATA-300 and Solid State
(SSD) Hard Drives.
The ProServ 4680
is IPMI-2 Compliant providing remote in-band
and out-of-band Server hardware health monitoring to prevent needless
downtime with pro-active maintenance.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features
ProServ 4680 Premium Advanced 4U Rack Server Chassis
Chassis Dimensions: 6.8 inches (173 mm) H,
17.6 inches (447 mm) W, 27.8 inches (706 mm) D
Trusted
Platform Module (TPM): Trusted Computing Group TPM Specification
1.2 compliant
Server Board Chipset: Intel 7300 Chipset.
Processor Support: One to four 64-bit Intel
Six-Core Xeon 7400 Sequence Processors up
to 2.66GHz 1066Mhz Front Side Bus, 16 MB Cache
Memory: 32 inline Memory Sockets support
up to 256GB Fully Buffered E.C.C. DDR2/667
PC2-5300 CMT Labs Certified Memory, Memory RAID, Configurable Hot-Pluggable
Memory, Memory sparing and mirroring in BIOS.
Internal Storage: Up to 8 Hot-Pluggable SAS
Hard Drives. LSI 1078 SAS Controller
PCI Expansion: 1 full-height (PCI Express 2.0 x16), 1 Intel® I/O Expansion Module (PCI Express 2.0 x8)
Network: Quad (4) x Intel Pro/1000 Server
Ethernet Controllers.
Front Panel: 3 USB-2 Ports, 1 Video Port
Rear Panel: 2 USB-2 Ports, 1 Video Port, 1
Serial Port , One 10/100Mb RJ-45 Server Management port, 1 SAS Expansion
Port
Cooling System: 8 Hot-Plug Redundant Cooling
Fans
Headless Lights Out: Bios and OS Console Redirection support, PXE boot option, IPMI compliant Server Chassis and Server Board and Server Management Software included.
Power: Redundant Hot-Pluggable High Efficiency
1+1 1570-Watt P.F.C. Auto-Sensing 120-240 Volt
Remote Server Management: IPMI-2
Compliant Base Board Management Controller monitors sensors in the
Server. Monitoring Software included for Linux and Windows. Included
Dedicated 10/100 NIC provides KVM, HTTP and TELNET access to integrated
management controller for complete Lights-Out Remote Hardware Management.
Optional LCD Local Control Panel provides the ability to monitor server
operations and manage server directly from Front Panel. System health
indicators and corrective actions including automated power cycling,
OS watchdog timer, and fault-resilient booting.
Graphics: ATI ES1000 integrated Video Controller
with 32MB Memory
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.
Technical Product Specification
 5.7MB
|
