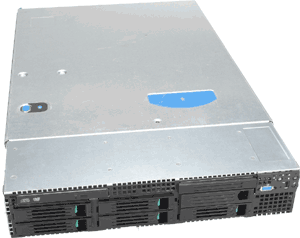

Servaris ProServ 2650 is a 2U Rack
Server built on Quad-Core Intel Xeon 5400 Processor
Technology.
The ProServ 2650 provides excellent performance, dependability
and manageability.
Servaris ProServ 2650 is equipped with 6 3.5-inch Drive
Bays and, embedded Intel Server RAID Technology which provides RAID
Levels 0, 1 and 10 and online Spare.
Servaris' ProServ 2650 Full Featured
2U Rack Server will provide you with high value, superior reliability,
performance and, a high return on investment.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features
Premium ProServ 2650 2U
Rack Server Chassis including High-Performance Passive Back plane
Chassis Dimensions: 3.4" (87.3 mm ) H
x 16.9" (430 mm) W x 27.75" (704.86 mm) D
Server Board Chipset: Intel® 5000 chipset.
Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Open
Solaris and Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS.
Microsoft Windows 2003 and 2008 Server
Processor Support: One or two 64-bit Intel
Quad-Core Xeon 5400 Sequence Processors. Up
to 1333Mhz Front Side Bus
Internal Storage: 6 Hot-Pluggable
Hard Drive Bays. Embedded Server RAID Technology II provides
SATA-300 RAID with RAID Levels 0, 1 and 10 and online Spare. SAS
Hard Drive Configurations require an add-in SAS module or RAID
controller.
PCI Expansion: Two Full-Height PCI-Express
(x8) and One Full-Height PCI-X 64Bit/100MHz and three Low-Profile PCIe
(x8)
Network: Dual Intel PRO/1000 82563EB Server
Ethernet controllers
Front Panel: 1 x USB-2.0 Port and Video Port.
Power LED, Hard drive activity LED, System status LED, System ID LED,
2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.
Rear Panel: 2 x USB-2.0 Ports, Two Serial
Ports 1 x RS-232 and 1 x RJ45 to DB9
Memory: Eight DIMM slots provide up to 32GB
DDR2/667MHz Advanced E.C.C. Fully Buffered, CMTL Certified Memory. Configurable
memory mirroring and sparing.
Cooling System: 3 Fixed Cooling Fans.
Power: High Efficiency 750-Watt P.F.C. 120-240-Volt
Auto-Sensing Power Supply. Option for fully Redundant 1+1 Hot-Pluggable
120-240 Volt P.F.C. Power Supplies
Remote Server Management:Included Advanced
Remote Management daughter card with 10/100 dedicated NIC provides
Redirected Console, KVM and http access
to the integrated management controller.
Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware maintenance options available.
|
