1U Computer Rack Mount Server Chassis 2 Node Server. 2 High Performance Servers in a 1U Server. That's 4 CPU Sockets and 288GB of DDR3 Memory in a 1U Server.
Computer Rack Mount Dual Node 1U Server M5i - Servaris - Click to return to Home Page Free Expert Advice and Pricing - Call 877.963.1900



1U Dual Node Rack Server

Each Server in the 1U Chassis supports Dual 5600 Six-Core Processors with Integrated SATA-300 RAID & Dual Intel PRO/1000 Network Connections

To Add Your Required Components &
Get a Price Quote
Click on Customize Button

 Customize it your way

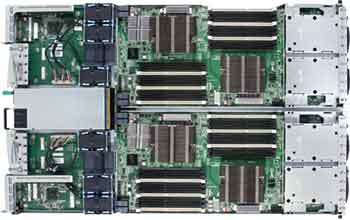

Servaris ProServ M5i is a Dual Node 1U Rack Server. The ProServ M5i consists of 2 Server Boards each supporting 1 or 2 Six-Core or Quad-Core 5600 Westmere Intel Xeon Processors and, up to 144GB DDR3/1333 Registered E.C.C. CMT Labs Certified Memory. Each Server Node supports 1 or 2, 2.5-inch SATA-300 Hard Drives or SATA SSD (Solid State) Drives.

The M5i provides cost savings solution for 2 independent Servers in a 1U Rack Chassis. Capitalizes on the strength of the Intel Xeon Six-Core and Quad-Core Westmere Processors with up to 6.4GT/s (Giga Transfers per Second) and supports up to 144GB DDR3 Registered E.C.C. Memory for the most daunting applications.

The cost-efficient ProServ M5i Dual Node 1U Rack Server makes life easy for deployment of front-end Web and Mail Server and Security Servers, as a proxy server and, for general server computing requirements. The ProServ M5i 1U Dual Node Rack Server arrives ready to conduct business eliminating lengthy downtime for setup and troubleshooting.

This 1U Server is an excellent candidate for Web Hosting and EMail Spam and Virus Filtering, Database and a host of Internet and Intranet Applications.

Servaris ProServ M5i supports FreeBSD, Open Solaris, Fedora Core, Red Hat Enterprise Linux, SuSE, Microsoft Windows 2008 Server.

The M5i 1U Dual Node HPC Rack Server is targeted to High Performance Computing segment applications that require maximum compute density, such as Life Sciences, Energy, Financial Services and Manufacturing.



Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions.

Key Features

ProServ M5i Premium 1U Rack Server Chassis. 2 Nodes in a 1U Rack Chassis

Chassis Dimensions:
17.64" (448 mm)W x 1.70" (43.2 mm)H x 28" (711.2 mm)D

Server Board Chipset: Intel® 5500 Chipset with Intel ICH10R. Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008 Server

Processor Support: Up to 2 Six-Core or Quad-Core Intel Xeon Westmere 5600 or Nehalem 5500 Processors per Node.

Internal Storage: Maximum 2 x 2.5-inch Hard Drives per node. 4 Hard Drives Total. Embedded RAID supports RAID-1

PCI Expansion: 1 PCI Express 2.0 X8 (1/2 length, low profile) per node and 1 I/O Expansion Module - PCI Express 2.0 X8 (10 Gbe and QDR Infiniband options) per node

Network: Integrated Dual Intel PRO/1000 82576EB (10/100/1000) Server Ethernet controllers.

Front Panel: 2 x USB-2.0 Ports. Power LED, Hard Drive Activity LED, System Status LED, System ID LED, 2 NIC LEDs, Power/Sleep Switch, Reset Switch, NMI Switch

Rear Panel: 3 USB-2.0 Ports, Rear Panel RS-232 Serial Port, Mouse and Keyboard Ports

Memory: Up to 144GB DDR3/1333 Registered E.C.C. CMT Labs Certified Memory per Node.

Cooling System: Two 120mm and Two 92mm Hot-Pluggable Cooling Fans. Fan speeds controlled by Integrated System Management Controller.

Power: High-efficiency (80-plus gold) 1100-watt Fixed non-redundant Power Supply.

Remote Server Management: IPMI-2.0 Compliant, Lights-Out-Remote, FreeBSD, Linux, Windows, Solaris using open source software. PXE boot option, Bios and OS Console Redirection

Graphics: Integrated ATI Rage with 8MB video memory.

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.
