Data Storage RAID System | iStor 8400 | 16-Bay 8GB Fibre to SAS / SATA | Expandable to 112 Hard Drives | Complete Web Based Management

16 Drive iStor 8400 RAID Data Storage Subsystem - Click here to return to Home Page Free Expert Advice and Pricing - Call 866.712.1713

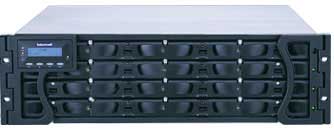

16-Bay 8GB Fibre to SAS/SATA-300 3U Direct Attached RAID Storage Subsystem

To Add Your Required Components &
Get Manually Checked Price Quote
Click on Customize Button

Configure and get a free Price Quote for the Servaris iStor 8400 Data Storage Subsystem
Freedom Technologies iStor 8400


Servaris's Data Storage RAID System iStor 8400 provides an 8GB Fibre to SAS / SATA Enterprise solution for high traffic data storage and retrieval applications such as clustering, streaming video and heterogeneous storage, which require high throughput and continuous uptime.

As your Data Storage RAID System requirement grow, you can add up to six 16-Bay JBOD Storage Systems for a total of 112 Hard Drives.

Included as standard, dual redundant, load-sharing power supply modules and power management circuitry accommodate the dynamic requirements of today's drives. Smart circuitry at each drive assures data integrity by minimizing drive damage during insertion and removal. This system further includes power supply-to-drive isolation, which allows control over voltage and current fluctuations.

The Servaris iStor 8400 dual redundant, load-sharing power supply modules and power management circuitry accommodate the dynamic requirements of today's drives. This system further includes power supply-to-drive isolation, which allows control over voltage and current fluctuations.

IOSmart allows for the flexible configuration of logical drives, logical volumes and logical partitions and ensures instant RAID availability via background logical drive initialization. Fibre loops' load balancing is provided within the subsystem. The firmware's embedded intelligent algorithms, such as Adaptive Write Policy and Guaranteed Latency I/O, improve sequential write performance and ensure the fast and continuous flow of data.

The DrvSmart utility provides an easy way to store data while keeping it safe. One of the main DrvSmart functions, Media Scan, retrieves data from degraded or damaged hard drives and handles low quality drives in both the degraded mode and during the rebuild process. Other DrvSmart features include disk cloning, drive roaming, SMART, transparent resetting of non-responsive hard drives, and RAID parity update tracking and recovery.

Not sure if this RAID Storage is right for you? Please feel free to call us toll-free. We're here to answer your questions.

Key Features

iStor 3U Rack-optimized Chassis with Rack mount kit
Dimensions with handles: 5.2" Height, 19" Width, 19.9" Deep

Internal Storage: 16 Hot-Pluggable Drive Bays. Supports SAS and/or SATA Hard Drives.

RAID Controller: High-Performance Infortrend SAS RAID Controller supports RAID levels 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60, NRAID and JBOD. 600Mhz RISC CPU, 512KB L2 cache, ASIC 266. Automatic background rebuilds. Configurable stripe size and write policy per array, Online Capacity Expansion (OCE) by adding new drives, copying and replacing drives with larger capacity.

Host Adaptors: 4 x 8GB Fibre Channel Host Ports.

Expansion: 1 x SAS Wide Expansion Port. 6 iStor JBOD Chassis, up to a maximum of 112 Hard Drives.

Interfaces: 2 Com ports, One (1) 10/100 Ethernet port.

Memory: 2GB DDR2

Cooling System: Two redundant, variable-speed hot-pluggable fan modules to assure maximum chassis cooling efficiency and operation flexibility.

Power: 2 x 460-Watt redundant hot-pluggable power supplies. 100VAC at 10A, 240 VAC at 5A with PFC (auto-switching)

Remote Management: Firmware-embedded Java-based manager: Graphical user interface. Local/remote management; in-band or out-of-band via TCP/IP. Centralized management to monitor and administer multiple RAID units on one screen. Secure link over SSL. Configuration Client for easy access to the configuration utility screen. SNMP 2.0 MIBs with get and set commands. Event notifications sent over email, fax, LAN broadcast, SNMP traps, MSN messenger, ICQ, SMS short messages

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.

Configure and get a Quote for the Servaris iStor 8400
