Ideal Server as Backend Server for Virtualization and Cloud Computing

To Add Your Required Components & Get a Price Quote Click on Customize Button

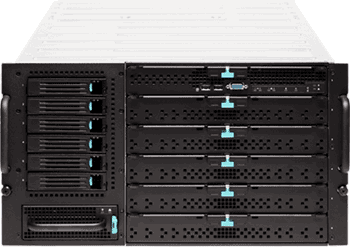

Servaris' ProServ M6110 Computer Blade Server System is Modular in design and offers very high availability features such as, redundant Hot-pluggable cooling fans, hot-pluggable power supplies, Virtualized shared Hot-Pluggable Hard Drives. The ProServ M6110 Blade Server can be configured with memory mirroring and sparing.

The Management Module provides a virtual presence GUI for managing the entire ProServ M6110 Blade Server system. It allows in-band and out-of-band management of the compute modules, virtualized shared storage, and ethernet switch.

Full remote management of the system including virtual presence allows you to see your configuration and system from a remote location. Remote Media allows easy remote installs from anywhere and intuitive navigation allows you to configure your storage, network and servers within minutes.

Take the pain out of firmware updates with the unified firmware update feature, allowing you to update all components and servers in the system through one interface and one update package.

The M6110 Blade Server delivers Real time Hardware Information and Alert Notifications on all Components within the system.

The M6110 Blade Server allows up to 6 Server Compute Blade Modules and up to 6 3.5-inch storage drives, purchase only as much as you need when you need it.

Hot-pluggable components don’t require any cables or tools to service.

Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions.

Key Features

ProServ M6110 Premium 6U Modular Computer Blade Server Chassis with support for up to six Compute Modules RoHS Compliant

Chassis Dimensions: 10.3in Height x 17.5in Width x 28.4in Depth
261.62mm Height x 444.5mm Width x 721.36mm Depth

Power: Up to four Hot-Pluggable Redundant 1000-watt DC output power supply modules with 110-240V AC input

Server Board Chipset: Intel 5520 Chipset featuring Intel 64-Bit Memory Technology; Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Linux Fedora Core, Red Hat Enterprise Server, SuSE and, Microsoft Windows Server 2008

Processor Support: One or two Intel Six-Core 5600 Xeon Processors or Quad-Core 5500 Xeon 64-bit Processors with up to 6.4 GT/s , Hyper threading technology, with up to 12MB L2 Cache. per Compute Blade Module. Maximum of 12 Processors (72 Cores) per 6 Modular Blade System.

Internal Storage: 6 x 3.5" SATA-300 or SAS Hard Drives

Disk Controller: Integrated LSI 1064e controller (access to shared storage). Supports RAID 0, 1, 1E, 5, 10

Network: Dual Intel 82575EB (10/100/1000) PCI-Express Server Ethernet Controllers per Compute Blade, Single 10-Port Layer 2+ Switch with option for 2nd Layer 2+ Switch for Redundancy.

Storage Controller Module: RAID: 0, 1, 1E, 5, 6, 10. External extended storage mini SAS port. Six internal 3GbPS SAS channels. Active-Active redundancy. Battery Backup Module Included in Base System.

Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.

Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)

Memory: 12 DDR3 DIMM sockets. 96GB Total Memory per Compute Blade, 48GB per Processor. Channel mirroring, demand scrubbing, patrol scrubbing, and channel independent mode

Cooling System: The cooling subsystem consists of three cooling zones:

  I/O module cooling
  Hard drives and power supplies
  Compute Blade modules

Each cooling zone contains dedicated hot-swap fan modules. Each fan module contains a status LED to indicate a fan failure. The front and rear-accessible fan modules connect directly to the system mid plane board.

Headless Lights-Out: All functionality is via Web Browser. This includes KVM, Redirected Console, All Management

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.
