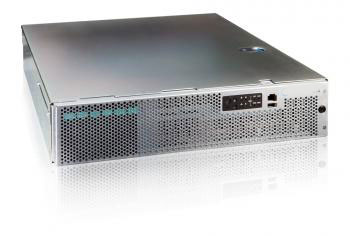

Chassis: Premium Ruggedized NEBS Level-3 ETSI Certified 2U Rack Server Chassis

Chassis Dimensions: Height 3.45-inches, Width 17.5-inches, Depth 20.0-inches

Server Board Chipset: Intel® C600 Chipset. Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2008R2 64Bit Server

Processor Support: 1 or 2 Eight-Core or Quad-Core E5-2600 Series Intel Xeon Processors. Up to 8.0 GT/s (Giga Transfers per second) with 20Mb Cache

Memory:16 Memory Dimm Slots, 2 Slots/channel, 4 Memory Channels per Processor

Internal Storage: Up to 6 x 2.5" SAS, SATA and SSD Drives with embedded SAS controller with RAID-0, RAID-1 or RAID-10.

Multiple flash memory options, including Internal bootable USB flash device, Two front accessible SD flash media devices, SATA solid state drives

PCI Expansion:

2 Separate PCI Risers with Options:

• Right Side PCIe Passive Single Full Height Slot x16

• Right Side Two full height PCI Express x8 connectors

• Right Side Two full-height PCI-X 133 connectors

• Left Side PCI Express Full Height Passive Riser Single Slot x16

• Left Side PCI Express Passive Riser Dual Slot x8

Network: Four Integrated Intel i350-AM 10/100/1000 NICs. Optional I/O Module for two or four additional Intel i350-AM 10/100/1000 NICs. Options for Intel Dual Port 10GbE I/O Module.

Front Panel: Main Power, Critical alarm, Major alarm, Minor alarm, Power alarm, System ID, HDD activity, Drive Fault (one per drive). Switches: Power, Reset, NMI, ID.

Rear Panel: Two USB Ports, DB-15 Male Serial Port, RJ45 Serial Port , Telco Alarm Connector, SAS Port for external JBOD support, optional GCM Port Connector.

Memory: 12 DIMM Slots provide up to 256GB DDR3/1600Mhz E.C.C. Registered CMT Labs Certified Memory. Memory Mirroring and Memory Sparing BIOS Options.

Cooling System: 4 cooling fans; two 80mm x 38mm and two 40mm x 28mm aided by two additional fans located in the power sub system.

Power: Redundant Hot-Pluggable 600-Watt 0+1 P.F.C. 100-240V AC Auto-Sensing power supply or 600-Watt -48 Volt D.C.

Remote Server Management: IPMI-2.0 Compliant, Lights-Out-Remote, FreeBSD, Linux, Windows, Solaris using open source software. PXE boot option, Bios and OS Console Redirection.

Graphics: Integrated Matrox G200 2D Video Graphics controller

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.

NEBS Level-3 ETSI Compliant:
• NEBS GR-63-CORE, Issue 3 - Physical Protection
• NEBS GR-1089-CORE, Issue 4 - Electromagnetic Compatibility and Electrical Safety
• ETSI Standards Compliance (DC Input Only)

With DC Power:

• ETSI EN 300 386 - EMC requirements for Telecom Equip.
• ETSI 300-019-2-1 - Storage Tests, Class T1.2
• ETSI 300-019-2-2 - Transportation Tests, Class T2.3
• ETSI 300-019-2-3 - Operational Tests, Class T3.2

Environmental Specifications:

Download here
