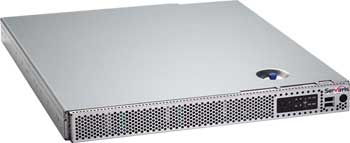

NEBS Level-3 20-inch Depth 1U Rack Server for Telco and Rugged Military Environments

Chassis: Premium NEBS-3 ETSI Certified Ruggedized Short Depth 1U Rack Server Chassis

Chassis Dimensions: Height 1.70", Width 16.9", Depth 20.0"

Server Board Chipset: Intel Server Board with Intel® C602 (-A) chipset

Processor Support: 1 or 2 Low-Voltage Quad/Six/Eight-Core E5-2400 Series Intel Xeon Processors

Internal Storage: Up to 4 x 2.5" SAS (Serial Attached SCSI) or SATA SSD Hard Drives.

PCI Expansion:
1 x PCIe Gen 3 Riser Slot

Network: 4 Integrated Intel I350 Server Ethernet controllers. 82563EB and 82571

Front Panel: • 2 x USB-2.0 Ports.

• Power LED, Hard Drive Activity LED, System Status LED, System ID LED, 4 NIC LEDs

• Power/Sleep Switch, Reset Switch, NMI Switch

Rear Panel:

• 4 x RJ45 Network connectors

• DB-15 Video connector

• RJ-45 serial port A connection

• Four USB 2.0 connectors

• DB-15 Telco Alarms Connector

Memory: Up to 128GB of DDR3/1600 E.C.C., Buffered, CMT Labs Certified Memory

Cooling System:
• Two Processor Fans

• Five Managed System Fans

Power: Redundant Hot-Plug 650-Watt -48 Volt DC Power Supplies or 650-Watt AC Power Supplies

Remote Server Management: IPMI-2.0 Compliant, Lights-Out-Remote, FreeBSD, Linux, Windows, using open source software. PXE boot option, Bios and OS Console Redirection.

Graphics: Integrated Server Engines LLC Pilot II Controller with 16MB DDR3 Memory

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.

Environmental Specifications:
Download the M1100 Environmental Specifications PDF
