Raid System | Data Storage | 48 Drive Bay | iStor 9200 | Web Based Headless Management |
|
Free Expert Advice and Pricing - Call 866.712.1713 | |
Data Storage RAID System 48-Bay 8GB Fibre to 6Gb/s SAS / SATA Storage RAID SubsystemExpandable to 240 Hard Drives with Complete Web Based Management |
|
24-Bay Fibre to SAS/SATA-300 4U RAID Storage Subsystem |
|

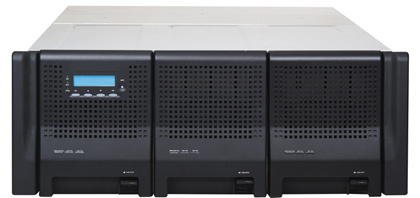

Servaris Data Storage RAID System iStor 9200 is a 48 Bay Enterprise RAID 8GB Fibre to SAS/SATA Data Storage RAID System. The iStor 9200 provides the solution for high traffic data storage and retrieval applications such as clustering, streaming video and heterogeneous storage, which require high throughput and continuous uptime. As your DATA Storage requirements grow, you can add up to 4 x 48-Drive Bay Data Storage RAID System JBOD Expansion Systems for a total of 240 SAS and/or SATA hard Drives. Included as standard, dual redundant, load-sharing power supply modules and power management circuitry accommodate the dynamic requirements of today's drives. Smart circuitry at each drive assures data integrity by minimizing drive damage during insertion and removal. This system further includes power supply-to-drive isolation, which allows control over voltage and current fluctuations. The Servaris Data Storage RAID System iStor 9200 dual redundant, load-sharing power supply modules and power management circuitry accommodate the dynamic requirements of today's drives. This system further includes power supply-to-drive isolation, which allows control over voltage and current fluctuations. IOSmart allows for the flexible configuration of logical
drives, logical volumes and logical partitions and ensures instant RAID
availability via background logical drive initialization. Fibre loops'
load balancing is provided within the subsystem. The firmware's embedded
intelligent algorithms, such as Adaptive Write Policy and Guaranteed
Latency I/O, improve sequential write performance and ensure the fast
and continuous flow of data. Not sure if this RAID Storage is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features
iStor 4U Rack-optimized Chassis with Rack
mount kit Internal Storage: 48 Hot-Pluggable Drive Bays. Supports 6GB/s SAS and/or 6GB/s SATA 3.5-inch Hard Drives. RAID Controller: High-Performance Infortrend SAS RAID Controller supports RAID levels 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60, NRAID and JBOD. ASIC 667. Automatic background rebuilds. Configurable stripe size and write policy per array, Online Capacity Expansion (OCE) by adding new drives, copying and replacing drives with larger capacity. Host Adaptors: 4 x 8GB Fibre Channel Host Ports. 2 x 1GbE iSCSI ports Expansion: 1 x SAS Wide Expansion Port. 4 iStor JBOD Chassis, up to a maximum of 240 Hard Drives with 4 x 48 Bay JBOD Expansion Systems. Interfaces: 2 Com ports, One (1) 10/100 Ethernet port. Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector) Memory: 1GB DDR2 on RAID Controller upgradable to 4GB Cooling System: Two redundant, variable-speed hot-pluggable fan modules to assure maximum chassis cooling efficiency and operation flexibility.
Green Power Design: 3 x 530-Watt redundant hot-pluggable
power supplies. 100VAC at 10A, 240 VAC at 5A with PFC (auto-switching)
Remote Management: Firmware-embedded Java-based manager: Graphical user interface. Local/remote management; in-band or out-of-band via TCP/IP. Centralized management to monitor and administer multiple RAID units on one screen. Secure link over SSL. Configuration Client for easy access to the configuration utility screen. SNMP 2.0 MIBs with get and set commands. Event notifications sent over email, fax, LAN broadcast, SNMP traps, MSN messenger, ICQ, SMS short messages RS232 serial port for local access to firmware-embedded utility Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available. |
