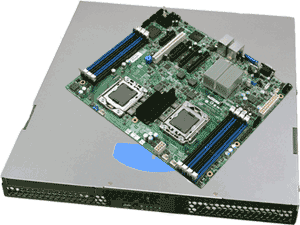

The Servaris ProServ M505 1U Rack Server
is a 20-inch short depth rack server based upon Intel Six-Core
Xeon 5600 Technology.
The ProServ M505 will provide outstanding performance,
dependability and manageability. High performance
and redundancy are essential for enterprise business running high volume
transactional SQL databases, central mail services, High Performance
Computing data center and other critical applications.
-
Think Green: Energy Savings from design implementation and cost savings from performance per watt. Reduce power and cooling costs while increasing rack density with policy-based power and thermal management
-
Extend Manageability: Reduced time in deployment and easy to manage hardware via remote web based OS independent tool, including KVM and Redirected Console
-
Platform Virtualization: Next Generation Intel® Virtualization Technology enables best-in-class virtualization performance, superb scalability, enhanced flexibility, and simplified server management.
Servaris' ProServ M505
Short Depth 1U Rack Server will provide you with high value,
superior reliability, performance and, a high return on investment.
Not sure if this server is right for you? Please feel free to call us toll-free. We're here to answer your questions. |
Key Features
ProServ M505 1U Rack Server Optimized Chassis.
Chassis Dimensions: 1.68" (height) x
19.92" (depth) x 16.93" (width)
Server Board Chipset: Intel® 5500 chipset
with Intel® I/O Controller Hub ICH10R. Supports both 32-bit and
64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions
Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008
Server
Processor Support: Single
or Dual 64-bit Intel Six-Core 5600 Westmere or
Quad-Core Xeon 5500 Sequence Processors with up to 6.4
GT/s (Giga Transfers per Second).
Internal Storage: 2 Fixed Hard Drive Bays.
Integrated SATA-300 RAID Controller supports RAID-0 or RAID-1. SAS Hard
Drive supported with add-in SAS RAID Controller.
PCI Expansion: 1 low profile half-length PCI
Express 2.0 x8 riser.
Network: Dual Intel 82567 (10/100/1000) PCI-Express
Server Ethernet Controllers.
Front Panel: Bootable USB 1.1 Port and VGA Video Port. Power LED, Hard drive activity LED, System status LED, System ID LED, 2 NIC LEDs, Power/Sleep switch, Reset switch, NMI switch.
Rear Panel: Two USB-2.0 Ports, Serial Port (RJ45 Connector)
Memory: 8 DDR3 DIMM sockets. 64GB Total Memory,
32GB per Processor. Channel mirroring, demand scrubbing, patrol scrubbing,
and channel independent mode
Cooling System: Four dual-rotor 56mm fans and one single-rotor 28mm fan mounted in tool-less fan module and providing cooling for the processors, hard drives, and add-in cards; two 28mm fans for cooling the power supply.
Headless Lights Out: Bios and OS Console Redirection support, PXE boot option, IPMI compliant Server Chassis and Server Board and Server Management Software included.
Power: 400-Watt High Efficiency 120-240 Volt
P.F.C. Fixed Power Supply.
Remote Server Management: Lights-Out Remote
Server Management via OS independent Web Browser, configurable Email
alert notification, Java based Console
Redirection
Graphics: Server Engine LLC Pilot II controller with 64 MB DDR2 memory, 8MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.
|
