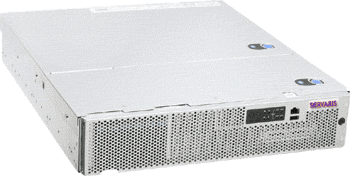

Chassis: Premium Ruggedized NEBS-3 ETSI Compliant 2U Rack Server Chassis

Chassis Dimensions: Height 3.45", Width 17.5", Depth 20.0"

Server Board Chipset:Intel® 5520 Chipset + ICH10R. Supports both 32-bit and 64-bit Operating Systems such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat, Ubuntu, SuSE, CentOS. Microsoft Windows 2008 Server

Processor Support: 1 or 2 Six-Core or Quad-Core 5600 Intel Xeon Processors. Up to 5.86 GT/S (Giga Transfers per second)

Internal Storage: Up to 6 x 2.5" SAS and SATA Hard Drives. Embedded LSI Logic LSISAS1068 SAS controller with RAID-0, RAID-1 or RAID-10.

Multiple flash memory options, including Internal bootable USB flash device, Two front accessible SD flash media devices, SATA solid state drives

PCI Expansion: 3-slot PCI-e passive Riser (1 full-size x16 physical x8 electrical slot and 2 full-size x8 physical x8 electrical slots) or

5 Slot PCI-e active Riser, 1 full-size x16 physical x8 electrical slots 2 full-size x8 physical x8 electrical slot 2 low-profile x8 physical x8 electrical slots or

5 slot PCI-e / PCI-X Active Riser, 2 Full-size PCI-X 133 slots, 1 full-size x8 physical x8 electrical slot, 2 low-profile x8 physical x8 electrical slots

Network: Two Integrated Intel PRO/1000 NICs and optional I/O Module for two or four additional PRO/1000 NICs. Options for Dual Port 10GbE I/O Module.

Front Panel: Main Power, Critical alarm, Major alarm, Minor alarm, Power alarm, System ID, HDD activity, Drive Fault (one per drive). Switches: Power, Reset, NMI, ID.

Rear Panel: Two USB Ports, DB-15 Male Serial Port, RJ45 Serial Port , Telco Alarm Connector, SAS Port for external JBOD support, optional GCM Port Connector.

Memory: 12 DIMM Slots provide up to 96GB DDR3/1333 E.C.C. Registered CMT Labs Certified Memory. Memory Mirroring and Memory Sparing BIOS Options.

Cooling System: 4 cooling fans; two 80mm x 38mm and two 40mm x 28mm aided by two additional fans located in the power sub system.

Power: Redundant Hot-Pluggable 600-Watt 0+1 P.F.C. 100-240V AC Auto-Sensing power supply or 600-Watt -48 Volt D.C.

Remote Server Management: IPMI-2.0 Compliant, Lights-Out-Remote, FreeBSD, Linux, Windows, Solaris using open source software. PXE boot option, Bios and OS Console Redirection.

Graphics: Integrated ATI RAGE XL SVGA PCI video controller with 8 MB of video memory.

Warranty: 3 Year Warranty - Flexible On-Site Hardware Maintenance options available.

NEBS Level-3 ETSI Compliant:
• NEBS GR-63-CORE, Issue 3 - Physical Protection
• NEBS GR-1089-CORE, Issue 4 - Electromagnetic Compatibility and Electrical Safety
• ETSI Standards Compliance (DC Input Only)

With DC Power:

• ETSI EN 300 386 - EMC requirements for Telecom Equip.
• ETSI 300-019-2-1 - Storage Tests, Class T1.2
• ETSI 300-019-2-2 - Transportation Tests, Class T2.3
• ETSI 300-019-2-3 - Operational Tests, Class T3.2

Environmental Specifications: Download Specifications here 186KB
