Servaris ProServ M200 Tower Server
is a High Performance Server with large internal RAID Storage. Features
Intel 64-bit Six-Core and Quad-Core Xeon 5600 Processors
and the Intel 5520 Chipset with 12 memory slots providing up to 192GB
of Registered DDR3 memory.
Servaris ProServ M200 is an ideal candidate as a NAS Server, Windows File Server, Samba Server. Capitalizing on the power of 2-socket 6-Core Intel Xeon 5600 Series Xeon Processors provides the resources for robust and 24/7 reliability needed for backend Database Applications and Data Storage for high speed content delivery.
Servaris ProServ M200 is Open Source Operating System
Ready and supports, CentOS, FreeBSD, Fedora, Red Hat, SuSE, Ubuntu. Windows
Server 2003/2008R2 and Windows 2012 Server is supported also.
The Servaris M200 Tower Server
is ideal for environments where the requirement for large self contained
Data Storage is essential.
- Think Green: Energy Savings from design
implementation and cost savings from performance per watt. Reduce
power and cooling costs while increasing rack density with policy-based
power and thermal management
- Extend Manageability: Reduced time in
deployment and easy to manage hardware via remote web based OS independent
tool, including KVM and Redirected Console
- Platform Virtualization: Next Generation
Intel® Virtualization Technology enables best-in-class Virtualization
performance, superb scalability, enhanced flexibility, and simplified
server management.
Not sure if this server is right for you? Please feel
free to call us toll-free. We're
here to answer your questions.
|
Key Features

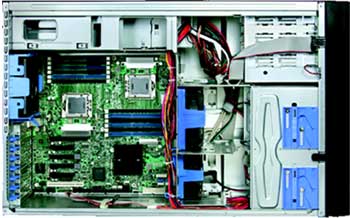

ProServ Premium M200 Tower Server with Locking
Front Bezel and 10 Hot-Pluggable Drive Bays.
Chassis Dimensions: 17.8" (452 mm) x 9.256"
(235 mm) x 19" (483 mm)
Server Board Chipset: Intel® 5520 chipset
with Intel® ICH10R; Supports both 32-bit and 64-bit Operating Systems
such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat,
Ubuntu, SuSE, CentOS. Microsoft Windows 2003/2008 R2 and 2012 Server
Processor Support: One or two 64-bit Intel
Six-Core or Quad-Core Xeon 5600 Sequence Processors
with up to 6.4 GT/s (Giga Transfers per Second).
Internal Storage: Up to 10 Hot-Pluggable
SAS (Serial Attached SCSI 3-6GB/s) and/or SATA-300 (Serial Attached
ATA 3GB/s) 3.5" Hard Drives. Provides capability for multiple
RAID configurations. The optional add-in RAID Controllers
support RAID Levels, 0, 1, 3, 5, 6, 10, 50 and, 60.
PCI Expansion:
1 PCI Express 2.0 x8 slot (x16 mechanical)
3 PCI Express 2.0 x8 slot (x8 mechanical)
1 PCI Express 1.0 x4 slot (x8 mechanical shared with optional SAS module)
1 PCI 32/33 5V slot
Network: Dual Integrated Intel 82575EB PRO/1000
(10/100/1000) Server Network Ethernet Controllers with Intel Virtualization
Technology.
Front Panel: 2 x USB-2.0 Ports. Power LED,
Hard Drive Activity LED, System Status LED, System ID LED, 2 NIC LEDs,
Power/Sleep Switch, Reset Switch, NMI Switch
Rear Panel: Four USB-2.0 Ports, VGA Port,
Mouse/Keyboard connectors
Memory: 12 DDR3 DIMM Slots, up to 192GB (96GB/Processor)
E.C.C. Registered CMT Labs Certified Memory. 4 channel native (800/1066/1333
MHz). Channel mirroring, demand scrubbing, patrol scrubbing and channel
independent mode.
Cooling System: Two 120mm and Two 92mm Hot-Pluggable
Cooling Fans. Fan speeds controlled by Integrated System Management
Controller.
Power: 750-Watt High-Efficiency P.F.C. Power
Supply with option for Redundant Hot-Pluggable 1+1
120-240 Volt P.F.C. High Efficiency Power Supplies
Remote Server Management: Integrated IPMI
2.0 baseboard management controller. Optional Web
Based Remote Management Module with 10/100 dedicated NIC provides
Redirected Console, KVM via Web Browser (Firefox, IE) access
to the integrated management controller.
Graphics: Server Engine LLC Pilot II Controller
with 64 MB DDR2 memory, 8 MB allocated to graphics
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.
|
