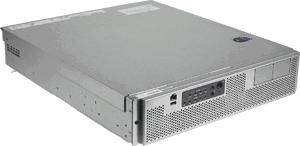

The Servaris ProServ
2610 2U Rack Server combines network port density and processor
performance in a compact 2U package, ideally suited for network data
applications including network security and services over IP (SoIP).
The ProServ 2610 capitalizes on the strength
of Intel 64-bit Quad-Core Processors and with extended lifecycle support,
coupling high performance with power efficiency to provide improved
performance-per-watt over previous-generation rack-mount servers.
The ProServ 2610 Server is
well suited for enterprise application acceleration and content caching,
and is a perfect fit for the demanding environment and limited space
of the Telco Central Offices, highly available Government data centers
and, Rugged Military environments. Servaris ProServ 2610
is an ideal platform for running Telco SoIP, including IMS, IPTV, video
on demand (VoD), SIP application servers, IP-PBX, and IP-PSTN gateways.
The Servaris ProServ 2610 will
provide extreme reliability and performance in your network infrastructure.
Not sure if this server is right for you? Please feel
free to call us toll-free. We're
here to answer your questions.
|
Key Features
Chassis: Premium NEBS-3 ETSI Certified Ruggedized 2U
Rack Server Chassis
Chassis Dimensions: Height 3.45", Width 17.5",
Depth 20.0"
Server Board Chipset: Intel Server Board with
Intel 5000P Chipset . Supports both 32-bit and 64-bit Operating Systems
such as FreeBSD, Open Solaris and Linux Distributions Fedora, Red Hat,
Ubuntu, SuSE, CentOS. Microsoft Windows 2003 and 2008 Server
Processor Support: 1 or
2 Low-Voltage Quad-Core 5400 Intel Xeon Processors with 1333Mhz
(1.3Ghz) Front Side Bus.
Internal Storage: Up to 6 x 2.5" SAS
(Serial Attached SCSI) Hard Drives. Embedded LSI Logic LSISAS1068 SAS
controller with RAID-0, RAID-1 or RAID-10.
PCI Expansion:
5 PCI Expansion Slots. 2 Full-Height PCI-Express, 1 PCI-X 64-Bit 133Mhz
and 2 Low-Profile PCI-Express x4
Network: Up to eight front
panel Gigabit NICs with options for Ethernet or Fibre
or mixed 4 + 4. Ethernet bypass feature for in-line security server
power failure, 2 Intel PRO/1000 Server NICs on rear panel. Up to 24
NICs in total supported
Front Panel: Main Power, Critical alarm, Major
alarm, Minor alarm, Power alarm, System ID, HDD activity, Drive Fault
(one per drive). Switches: Power, Reset, NMI, ID.
Rear Panel: Two USB Ports, DB-15 Male Serial
Port, RJ45 Serial Port , Telco Alarm Connector, SAS Port for external
JBOD support, optional GCM Port Connector.
Memory: Eight DIMM Slots provide up to 32GB
DDR2/667 Fully Buffered, E.C.C. CMT Labs Certified Memory. Memory Mirroring
and Memory Sparing BIOS Options.
Cooling
System: 4 cooling fans; two 80mm x 38mm and two 40mm x 28mm
aided by two additional fans located in the power sub system.
Power: Redundant Hot-Pluggable 600-Watt 0+1
P.F.C. 100-240V AC Auto-Sensing power supply or 600-Watt -48
Volt D.C.
Remote Server Management: IPMI-2.0
Compliant, Lights-Out-Remote, FreeBSD, Linux, Windows, Solaris
using open source software. PXE boot option, Bios and OS Console Redirection.
Graphics: Integrated ATI RAGE XL SVGA PCI
video controller with 8 MB of video memory.
Warranty: 3 Year Warranty - Flexible
On-Site Hardware Maintenance options available.
Environmental
Specifications: Download
Specifications here  168KB
|
