When it comes down to business and business demands low cost fast high-performance
servers, Freedom Tech's ProServ 1960 HPC 1U
Rack Mount Server provides the solution to that demand. It's also the
latest in next generation Quad-Core 64-bit Intel Xeon
based systems.
Harnessing the power of the Intel X5000 Chipset, dual Intel 64-bit Quad-Core
Xeon Processors with EM64T, up to 1600 Mhz Front Side
Bus and DDR2/667/800 fully buffered memory,
expect nothing less than outstanding performance, dependability and
manageability that is essential for enterprises running High Performance
Computing Applications.
Freedom Technologies ProServ 1960
is built for you to exacting specifications and well tested to ensure
no defective components are present. The IPMI compliant server has the
built in capability to report any malfunctioning component it monitors
so that you have peace of mind.
Freedom Technologies' ProServ 1960 Server was specifically designed
for High Performance Computing in a 1U form factor.
Freedom Technologies' ProServ 1960 1U
HPC Server supports FreeBSD, Open Solaris, Fedora Core, Red Hat, SuSE,
Microsoft Windows 2003 and 2008 Server.
 Learn
more about Intel Processors  842kb
Not sure if this server is right for you? Please feel
free to call us toll-free. We're
here to answer your questions. |
Specifications
- ProServ
1960 Premium 1U Rack-Optimized Chassis with three Hot-Pluggable
Hard Drive Bays and High-Performance SAS/SATA-II Passive Backplane
Dimensions: Height 1.7in Width 16.93in Depth 26.46in
Height 43.25mm Width 430mm depth 692mm
- Server
Board Chipset: Premium Intel Server Board with X5000 Chipset
featuring Intel 64-Bit Memory Technology. Supports both 32-bit and
64-bit Operating Systems such as FreeBSD/AMD64 and Linux Red Hat,
CentOS, SuSE, Solaris and Microsoft Windows 2008 Server.
- Processor
Support: One or two Intel Xeon Dual-Core or Quad-Core Processors
with up to 1600 Mhz Front Side Bus with up to 12MB
of L2 Cache.
- Internal
Storage: Three SAS (Serial Attached SCSI 3GB/sec) or SATA-II
(3GB/sec) Hot-Plug Drive bays. Integrated RAID controller supports
JBOD, RAID-0, RAID-1 + Online Hot-Spare. RAID 5 and SAS RAID configurations
require add-in RAID Controller.
- PCI
Expansion: One Full-Height PCI-Express (x16) Controllers
- Network:
Dual Intel PRO/1000 82563EB (10/100/1000) Server Ethernet Controllers
- Front
Panel: USB Port and Video Port
- Rear
Panel: 2 x USB-2.0 Ports, 1 x RJ45 Serial Port
- Memory:
16 DIMM slots provide up to 128GB DDR2/667MHz Advanced E.C.C. Fully
Buffered, CMT Labs Certified Memory. Configurable memory mirroring
and sparing. DDR2/800 Memory up to 64GB
- Cooling
System: Four dual-rotor 56mm fans and one single-rotor 28mm
fan mounted in tool-less fan module and providing cooling for the
processors, hard drives, and add-in cards; two 28mm fans for cooling
the power supply
- Headless
Lights Out: Bios and OS Console Redirection support, PXE
boot option, IPMI compliant Server Chassis
and Server Board with Remote Server Management Software included
- Power:
600-Watt 120-240 Volt Auto-Sensing P.F.C. Power Supply
- Remote
Server Hardware Management: Lights-Out Remote Server
Management for FreeBSD, Linux and Open Solaris via IPMI.
Linux Red Hat, SuSE and Windows, CDROM with GUI software is included.
Optional Advanced Remote Management daughter card with 10/100 dedicated
NIC provides KVM and http access
to the integrated management controller.
- Embedded
Video : ATI ES1000 Video Controller with 32MB DDR SDRAM
- Warranty:
3 Year Warranty - Flexible On-Site
Hardware Maintenance options available
The Intel® RAID Controller SRCSASJV
 provides
exceptional data protection for mainstream applications. |

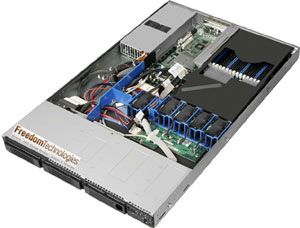

Specially
Designed for High Performance Computing
